MYRAYD MXA2080 STEREO POWER AMPLIFIER
POA
FREE DELIVERY* T&C'S APPLY WITHIN NEW ZEALAND

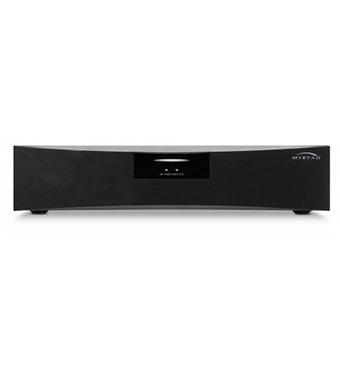

The MXA2080 Power Amplifier delivers 80 watts per channel of high quality sound in an attractive Myryad MX Series package.
The MXA2080 features:
The MXA2080 features:
- High output current design, supported by generously rated output transistors and reservoir capacitors and a massive (3.4kg) toroidal transformer ensures smooth, effortless delivery of power
- Selected main feedback resistor for open, transparent and natural sound
- Each amplifier channel has its own processor monitoring temperature, output current and DC. Any deviation triggers isolation of its loudspeaker output and a status indication on the front panel display
- 5 separately regulated power supplies for each amplifier channel ensure that all low level circuitry has clean, low-noise power, effectively isolated from the output stages
- Each channel has a line-out connector allowing easy “daisy-chaining” for bi-amping, tri-amping or multi-room applications
- Distinctive elliptical Standby touch switch
- LED indication of standby state
- Additional LEDs indicate fault condition if amplifier protection is activated
- Myryad “Smart My-Link®” for intelligent system operation with other Myryad products
- Optically isolated remote DC trigger control input/output for standby switching
Continuous rated power output 8W: |
80W |
4W: |
120W |
THD (@80% rated power, 8W 20Hz-20kHz): |
|
Signal/Noise ratio (A weighted, ref. 80W) |
>116dB |
Frequency response (20Hz - 20kHz) |
±0.2dB (-2dB @ 96kHz) |
Input sensitivity (ref. 80W output): |
900mV |
Input impedance |
60 kW // 440pF |
|
|
Physical Specification |
|
Dimensions (width x height x depth) |
436 x 95 x 355mm |
Weight, Net. |
|
|
|
Fascia |
9mm thick bead-blasted aluminium anodised with silver or black finish |
Please note that shipping can take a few weeks, but we aspire to have it on your doorstep as soon as possible for you to enjoy
