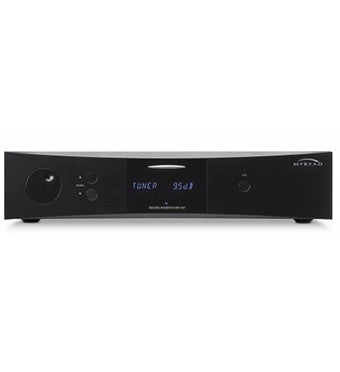

MYRYAD MXI2080 STEREO INTEGRATED AMPLIFIER

The MXI2080 Integrated Amplifier offers Myryad MX Series sound quality in a compact and attractive package. It delivers 80 watts per channel gives full control over up to eight sources with elegant simplicity and transparent sound.

• 8 line inputs, including a short path “Line Direct” input and two Tape loops
• Low-noise, low-distortion precision solid state volume control offering many benefits:
• No moving parts so no wear or “crackle”
• Totally consistent performance with negligible channel balance errors
• Signal-to-noise ratio improved at low volumes
• Precise and repeatable setting of volume  - in 0.5dB steps
• Channel balance adjustments can be made without affecting sound quality
• Volume “trim” level can be set individually for each input to allow all sources to sound equally loud
• Preamp section has its own power transformer and 5 separate power supply regulators, each optimised for its individual task
• The MXI2080’s 80W power amplifier features:
• High output current design, supported by generously rated output transistors and reservoir capacitors and a massive (3.4kg) toroidal transformer ensures smooth, effortless delivery of power
• Selected main feedback resistor for open, transparent and natural sound
• Each amplifier channel has its own processor monitoring temperature, output current and DC.  Any deviation triggers isolation of its loudspeaker output and a status indication on the front panel display
• 5 separately regulated power supplies for each amplifier channel ensure that all low level circuitry has clean, low-noise power, effectively isolated from the output stages
• Line-out connector allows easy wiring for bi-amping or other applications
• Bright blue Vacuum Fluorescent Display (VFD), shows selected input and volume setting in 0.5dB steps and allows access to setup menus

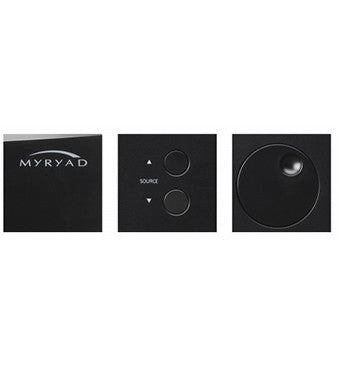

• Large rotary control for volume and menu navigation
• Menu allows individual level trims adjustment for each source, re-naming of sources and precision adjustment of channel balance
• Myryad “Smart My-Link®” for intelligent system operation with other Myryad products

Continuous rated power output       8W:	80W
4W:	120W
THD (@80% rated power, 8W 20Hz-20kHz):
Inputs:	Line direct, Tape, CD-R, CD, Tuner, TV, DVD, Aux
Signal/Noise ratio (A weighted, ref. 80W)	>107dB
Line input sensitivity (ref. 80W output):	320mV  (user trimmable 160-640mV)
Frequency response (20Hz - 20kHz)	±0.2dB (-2dB @ 96kHz)
Input impedance	22 kW // 200pF
Physical Specification
Dimensions (width x height x depth)	436 x 95 x 355mm
Weight, Net.
Fascia	9mm thick bead-blasted aluminium anodised with silver or black finishB
