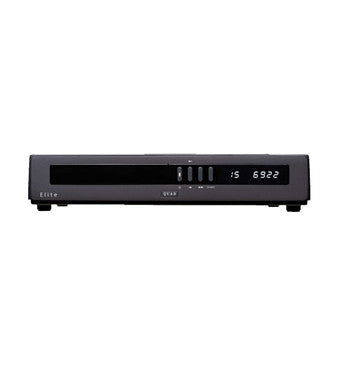

QUAD ELITE CD PLAYER
POA
FREE DELIVERY* T&C'S APPLY WITHIN NEW ZEALAND
CD Player, Crystal 24bit/96kHz DAC + Digital Inputs.
The Elite CDP uses a bespoke designed transport mechanism optimised to allow the unit to perform at utmost perfection. Its Crystal 24-bit/192kHz DAC converts digital data into analogue signal, which is available as either fixed level for use with a traditional pre-amplifier or as a variable level to allow direct connection to a power amplifier. It features six digital inputs to accept a range of PCM streams coming from digital outputs such as a DAB tuner, TV/satellite box, or computer soundcard.
| General Description | Compact Disc Player |
| D/A Converter | Crystal CS4398 24 bit DAC |
| Input Resolution Signals | 16-24 bit |
| Input Sampling Rates | 32-96kHz |
| Frequency Response | 20Hz – 20kHz (+0dB / -0.7dB) |
| Max.Audio Line Output | 2.4V RMS, RCA (Fix & Variable Output) |
| 4.8V RMS, Balanced (Quadlink) | |
| Output Impedance | 120 Ohms |
| Total Harmonic Distortion | ‹0.0013% at 1kHz |
| Dynamic Range | >100dB ‘A’ wtd. 16 bit |
| >117dB ‘A’ wtd. 24 bit | |
| Signal to Noise Ratio | ›113dB, 24bit (20Hz – 20kHz) |
| ›116dB, 24bit (20Hz – 20kHz) ‘A’ wtd | |
| ›94 dB, 16bit (20Hz - 20kHz) | |
| ›97 dB, 16bit (20Hz - 20kHz) ‘A’ wtd | |
| Crosstalk | <-120dB at 1kHz |
| Digital Audio Inputs | 3 x RCA Coax 75 Ohms, SPDIF |
| 3 x Optical TosLink, SPDIF | |
| Digital Audio Output | 1 x Optical TosLink, SPDIF |
| Disc Compatibility | CD-DA Conventional Audio CD |
| CD-R Recordable CD | |
| Main Power On/Off Switch | Yes |
| Dimensions (H x W x D) | 70 x 321 x 310 mm |
| Weight | 4.5 kg |
| Finish | Black |
| Remote Control | 31 keys |
Please note that shipping can take a few weeks, but we aspire to have it on your doorstep as soon as possible for you to enjoy.
