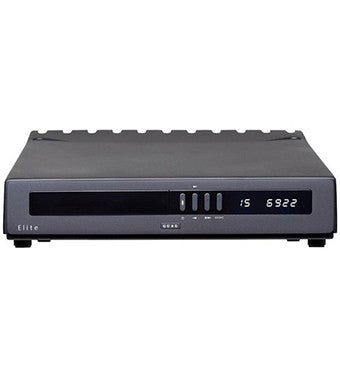

QUAD ELITE CDS CD PLAYER
POA
FREE DELIVERY* T&C'S APPLY WITHIN NEW ZEALAND
The Elite CDS enjoys significant revisions throughout, including a new transport mechanism and servo system. Digital data stream is regulated by a high-performance master clock to minimise jitter (phase noise), then fed to a top-end Crystal 24-bit/192kHz DAC with upsampling, which replaces the older 24-bit/96kHz chip used by its predecessor. The highest quality electronic components are specified throughout, with multi-layer circuit boards and Quad’s advanced, proprietary filtering and control software.
| General Description | Compact Disc Player |
| D/A Converter | Crystal CS4398 24 bit DAC |
| Input Resolution Signals | |
| Input Sampling Rates | |
| Frequency Response | 20Hz – 20kHz (+0dB / -0.7dB) |
| Max.Audio Line Output | 2.4V RMS, RCA/4.8V RMS, Balanced (Quadlink) |
| Output Impedance | 120 Ohms |
| Total Harmonic Distortion | ‹0.0013% at 1kHz |
| Dynamic Range | >100dB ‘A’ wtd. 16 bit |
| Signal to Noise Ratio | ›113dB, Digital Silence (20Hz – 20kHz) |
| ›116dB, Digital Silence (20Hz – 20kHz) ‘A’ wtd | |
| ›94 dB, 16bit (20Hz - 20kHz) | |
| ›97 dB, 16bit (20Hz - 20kHz) ‘A’ wtd | |
| Crosstalk | <-120dB at 1kHz |
| Digital Audio Output | 1 x Optical TosLink, SPDIF |
| Disc Compatibility | CD-DA Conventional Audio CD |
| CD-R Recordable CD | |
| Main Power On/Off Switch | Yes |
| Dimensions (H x W x D) | 70 x 321 x 310 mm |
| Weight | 4.5 kg |
| Finish | Black |
| Remote Control | 31 keys |
Please note that shipping can take a few weeks, but we aspire to have it on your doorstep as soon as possible for you to enjoy.
