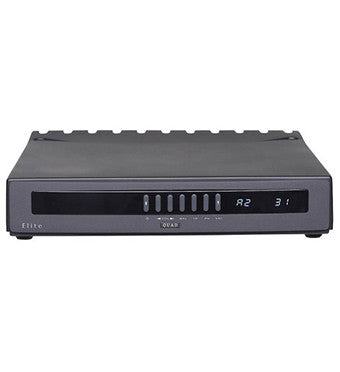

QUAD ELITE PRE-AMPLIFIER - Pre-Amplifier Incl MM/MC Phono Stage.
POA
The Elite Pre forms the heart of any system in which it is placed, and a great deal of work has been undertaken to further enhance the excellent levels of musical transparency delivered by its 99 Series predecessor. This has been achieved by careful component selection and re-tuning of the signal path, whilst maintaining the advanced facilities that are unique to Quad’s solid-state pre-amps, including Quad Link and Amp Bus connectivity (see below), bypass-switchable filter adjustment for bass and treble, and Quad’s unique ‘Tilt’ control that tailors the entire frequency response to suit the user’s preferred balance.
The Elite Pre is packed with technical innovation including noiseless solid-state signal switching and digitally addressed analogue volume and balance controls, which track both left and right channels with exceptional accuracy (better than 0.1dB). A highly specified built-in phono stage is provided for analogue turntables, too.
| General Description | Stereo Pre Amplifier |
| Inputs | 3 x Aux RCA, 1 x Tape, 1 x Phono MM (MC) |
| Frequency Response | |
| Line Inputs | 1Hz – 20kHz +0dB / -0.3dB |
| Line Inputs | 1Hz – 20kHz (+0dB / -0.3dB) |
| 0.1Hz – 55kHz ( +/-3dB) | |
| MM & MC Inputs | 20Hz – 20kHz (+/- 0.4dB) |
| Phono Inputs MM (MC) | |
| Sensitivity | >1,3, or 7.75mV (100,300 or 775uV) |
| Total Harmonic Distortion | ‹0.05% (0.01%) |
| RCA Phono Output level | 775mV (3.3V Max) |
| Impedance | 100 Ohms |
| Signal to Noise Ratio | >105dB (A) |
| AMPBUS Output Level | 2V (8V Max) |
| Impedance | 20 Ohms |
| Tape Output Level | 10, 300, 775mV (10V Max) |
| Impedance | 330 Ohms |
| Main Power On/Off Switch | Yes |
| Dimensions (H x W x D) | 70 x 321 x 310 mm |
| Weight | 4.42kg |
| Finish | Black |
| Remote Control | 43keys |
