MEDIA CORE 600

POA

Contact Us
FREE DELIVERY* T&C'S APPLY WITHIN NEW ZEALAND

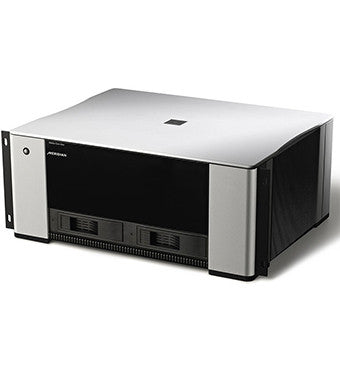

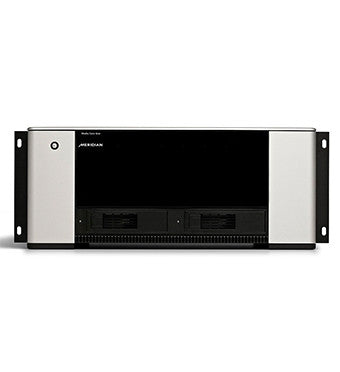

Media Core 600 offers a complete, multi-room system that delivers streaming content at phenomenal performance throughout your home from a central location. Media Core 600 can be controlled via Meridian’s Control 15 or popular home automation systems. Wireless control can be accomplished with our free iPad or iPhone app, or your computer. Meridian DSP Loudspeakers, including the DSP520 In-wall model, can also be used to control basic functions.
MUSIC EVERYWHERE
Media Core 600 provides six independent “zones,” or rooms, to share the internal library of up to 10,000 albums. Each room not only can have independent content, but discrete volume control as well. Multiple Media Core 600s can be combined where the home requires more than six rooms of music. In this case, each library within each Media Core 600 is combined and presented as one large collection.

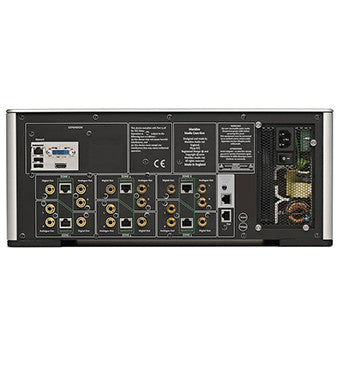

  • AUDIO CONNECTIONS (X6 ZONES)

1x Meridian SpeakerLink (RJ45)

1x S/PDIF coaxial digital output, RCA type

1 pair Analogue stereo (RCA type) 2v P-P or variable level.

Meridian House Sync

Meridian House Sync In and Out (RJ45) for daisy-chain synchronisation of multiple units

  • EXPANSION PANEL

1x Ethernet (RJ45) network connection

2x USB expansion connectors

Other sockets in the rear panel expansion section are not used

  • CONTROLS

Rear panel power switch

Front panel back-lit on/off button

  • AUDIO PROCESSING

Ultra-stable clock for lowest possible jitter

“Apodising” upsampling filter for ultimate digital performance

Individual zones may be configured to output high or standard sample rates

  • INDICATORS

Power button LED illuminates blue during startup and shudown; white when operating.

Six front-panel LEDs indicating as follows:

1    ERROR On=boot failure, flashing=drive mount failure.

2    TEMP On=product overheating

3    CPU On=CPU is running at greater than 80% usage.

4    RAID1 On=raid marked drive as failed.

5    RAID2 On=raid marked drive as failed.

6    ETHERNET On=Ethernet cable is not detected

If RAID1 and RAID2 LEDs are toggling, one of the drives is being restored to – ie a single new drive has been inserted with an existing working drive.

If ERROR is On and LEDs 2-6 are toggling, the drives are being initialized with a new filesystem. i.e. two new drives have been inserted.

  • POWER

Mains operation, universal voltage power supply

  • FINISH

Bead-blasted, anodised, natural silver aluminium.

  • WEIGHT

12.5 kg (27.5 lbs)

  • DIMENSIONS

440 x 185 x 350mm (18 x 7.3 x 13.8in) not including rear connectors or racking ears (WHD)

Please note that shipping can take a few weeks, but we aspire to have it on your doorstep as soon as possible for you to enjoy.
